Product Details

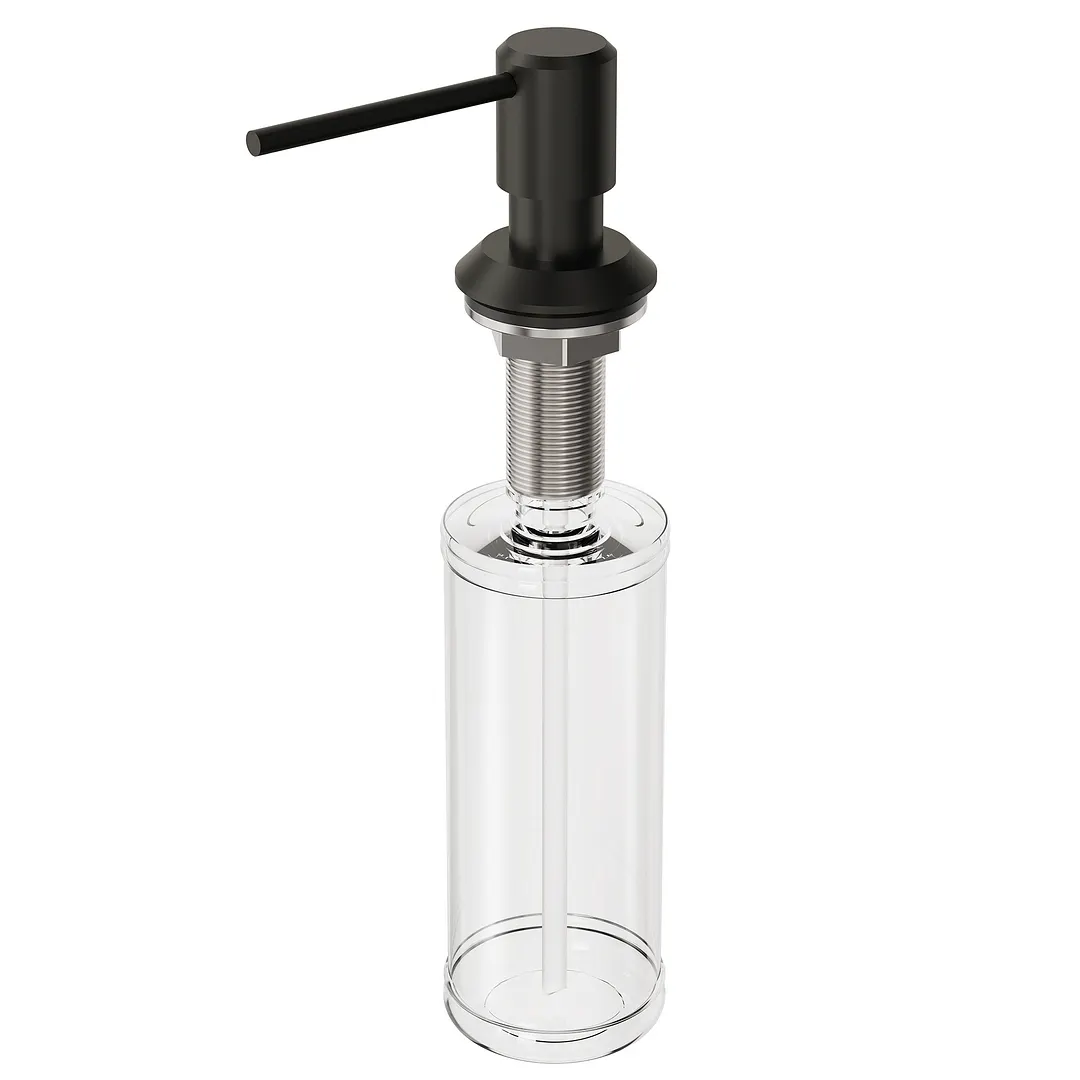

The EVERSTEIN Horizontal Handle Kitchen Sink Soap Dispenser combines a distinctive horizontal pump design with convenient built in installation. It features durable brass pump components, a 500 mL refillable PET bottle, a 360 degree swivel soap outlet, and smooth manual operation. The top refill design keeps the bottle below the countertop and helps reduce sink area clutter.
Key Features
Horizontal Handle Pump Design: The horizontal handle provides a distinctive modern appearance and a comfortable pressing method.
Convenient Top Refill: Refill the bottle from above the countertop without reaching underneath the sink.
360 Degree Swivel Soap Outlet: The outlet rotates to direct liquid soap where needed.
Durable Brass Pump Components: The pump head, pump body, threaded shank, and mounting nut are made from brass.
500 mL Below Counter Bottle: The included PET bottle provides approximately 17 fl oz of capacity and is installed below the countertop.
Smooth Manual Dispensing: The manual pump is designed for easy pressing, quick rebound, and a steady soap flow.
Easy Installation and Maintenance: The dispenser fits a compatible 25 to 30 mm mounting hole and the bottle can be removed for cleaning.
Corrosion Resistant Finish: The finish helps resist corrosion and everyday wear. The product has passed a 24 hour salt spray test at Grade 8 to 9 according to the provided product information.
| General | |
|---|---|
| Brand | EVERSTEIN |
| Model Number | SFS-1509R |
| Product Type | Horizontal Handle Built In Liquid Soap Dispenser |
| Application | Kitchen Sink, Bar Sink, Prep Sink, or Bathroom Vanity |
| Installation Type | Countertop or Sink Mounted |
| Operation | Manual Press |
| Pump Head Design | Horizontal Handle |
| Finish Options | Matte Black, Chrome, Brushed Gold, Brushed Nickel |
| Commercial Warranty | Yes. Please check our Warranty Information here. |
| Materials | |
| Pump Head Material | Brass |
| Pump Body Material | Brass |
| Threaded Shank Material | Brass |
| Mounting Nut Material | Brass |
| Bottle Material | PET |
| Bottle Capacity | 500 mL / 17 fl oz |
| Features | |
| Refill Method | Top Refill |
| Pump Head Rotation | 360 Degree Swivel |
| Soap Outlet | Swivel Spout |
| Bottle Position | Below Countertop |
| Salt Spray Test | 24 Hours Grade 8 to 9 |
| Expected Pump Cycle Test | Approximately 30000 to 80000 Pump Cycles |
| Recommended Use | Liquid Soap or Compatible Liquid Cleaning Products |
| Dimensions | |
| Installation Hole Size | 1"–1 3/16" (25–30mm) |
| Maximum Countertop Thickness | 1 1/2" (38mm) |
| Overall Height | 10 9/16" (268mm) |
| Spout Length | 3 7/16" (86.5mm) |
| Upper Body Diameter | 1 1/8" (29mm) |
| Spout Outer Diameter | 1/4" (6mm) |
| Spout Outlet Height | 1 15/16" (49mm) |
| Pump Height | 2 3/8" (60mm) |
| Deck Plate Diameter | 1 15/16" (49.5mm) |
| Bottle Inner Diameter | 2 1/4" (56.5mm) |
| Included Accessories | |
| Brass Pump Head | Included |
| Brass Pump Body | Included |
| 500 mL PET Bottle | Included |
| Suction Tube | Included |
| Mounting Hardware | Included |
| Installation Manual | Included |
| Not Included | |
| Exclusions | Kitchen sink, countertop, liquid soap, faucet, and additional extension tube |
Q1. Can the bottle be refilled from above?
A: Yes. The top refill design allows the bottle to be filled from above the countertop.
Q2. What is the bottle capacity?
A: The included PET bottle holds 500 mL or approximately 17 fl oz.
Q3. Can the soap outlet rotate?
A: Yes. The soap outlet swivels 360 degrees.
Q4. What materials are used for the pump?
A: The pump head, pump body, threaded shank, and mounting nut are made from brass.
Q5. Does the bottle sit below the countertop?
A: Yes. The bottle is installed below the countertop to help reduce sink area clutter.
Q6. What should I measure before ordering?
A: Measure the mounting hole, countertop thickness, and available space below the countertop.
Q7. Has the finish been tested for corrosion resistance?
A: Yes. The product has passed a 24 hour salt spray test at Grade 8 to 9 according to the provided product information.
